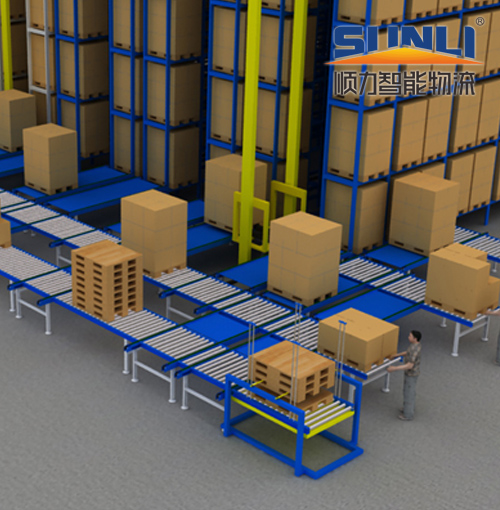

Powerhouse Automated Storage Rack:

     Three-dimensional warehouse, high-level shelf warehouse, automatic access system AS / RS (Automatic Storage & Retrieval System). It is generally used several layers, ten layers or even dozens of layers of high shelves, with automated material handling equipment for the goods out of storage and storage operations warehouse.

     Three-dimensional warehouse generally by the high-level shelves, material handling equipment, control and management equipment and civil construction and other parts of the composition.

     Customer Case:

     Customer Name: Ningbo Power Supply Company

     Product Name: Automated Storage Rack

     Storage unit: turnover box

     Storage items: energy meter

     Number of roadways / stacking machine number: 1/1

     Number of cargo spaces: 72

     Unit carrying (kg): 50

     Unit size (mm): 20 × 450 × 550

     Peripheral equipment: conveyor line

   Advantage:

    1. High-level shelf storage, saving inventory area, improve space utilization. At present, the world's highest automated warehouse has reached a height of 50m, the unit area of storage capacity of up to 7.5t / m 3, 5-6 times the general warehouse.

    2. Automatic access, operation and processing speed, at the same time, can be easily incorporated into the enterprise's material system.

    3. Computer control, easy to inventory and inventory, a reasonable reduction in inventory.

    Function: 1. Receipt. The warehouse receives a variety of materials, semi-finished or finished products from suppliers or production plants for production or processing.

    Inventory. Store the unloaded goods to the location specified by the automation system.

    Pick up According to the demand situation from the Treasury to obtain the customer needs the goods. Usually take first-in first-out (FIFO) mode.

    4. Shipping. Will be removed from the goods according to strict requirements to customers.

    5. Information inquiry. You can check the information about the warehouse at any time, including inventory information, job information, and other information.

    Smooth high-level shelf performance characteristics:

    1. In the case of uniform pressure, the deflection of the beam is 1/200 of the length of the beam, and the maximum permissible deflection of the column is 1/1000 of the height. The safety factor is 1.65;

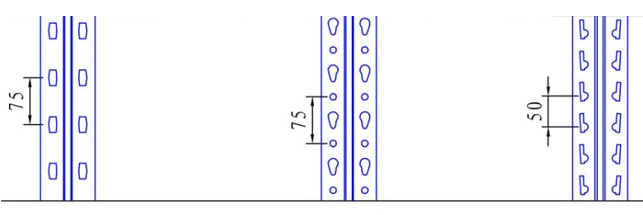

    2. Column spacing of 75mm / 50mm, the beam can be arbitrarily adjust the height of this spacing, unique diamond-shaped hole design, can be used upside down, and is equipped with safety plugs to prevent the movement of the top of the beam.
