product description

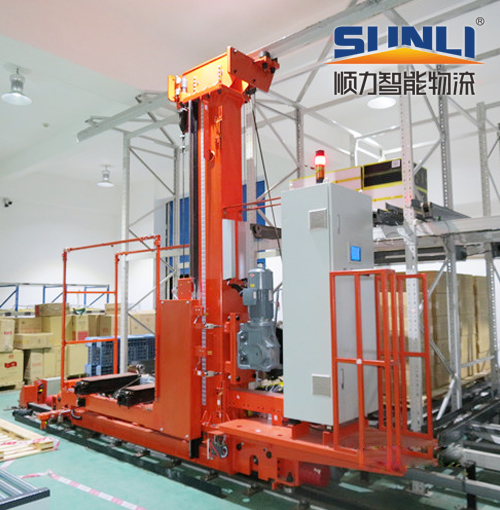

Heavy-duty stacker is the core equipment of the automated warehouse, which not only requires accurate, fast and reliable positioning, but also must be safe and secure. The stacker consists of upper and lower beams, columns, loading stands, counterweight and various telegraph control elements. The stacker relies on the host to walk, and the cargo stand is lifted and the fork is extended to move the unit cargo in three directions of the warehouse, In order to achieve the task of placing the goods into / out of the shelves, the working capacity of the stacker determines the maximum capacity of the entire automated warehouse.
Customer Case:
Customer Name: Liaoyuan Tobacco Distribution Center
Product Name: Three-dimensional library
Storage unit: tray
Storage items: merchandise smoke
Number of roadways / stacking machine number: 1/1
Number of cargo spaces: 60
Unit carrying (kg): 300
Unit size (mm): 1500 × 650 × 1400
Peripheral equipment: conveyor line, sorting line
Smooth three-dimensional library advantages and functions:
advantage:
1. High-level shelf storage, saving inventory area, improve space utilization. At present, the world's highest three-dimensional warehouse has reached a height of 50m, the unit area of storage capacity of up to 7.5t / m ?, 5-6 times the general warehouse.
2. Automatic access, operation and processing speed, at the same time, can be easily incorporated into the enterprise's material system.
3. Computer control, easy to inventory and inventory, a reasonable reduction in inventory.
Function: 1. Receipt. The warehouse receives a variety of materials, semi-finished or finished products from suppliers or production plants for production or processing.
Inventory. Store the unloaded goods to the location specified by the automation system.
Pick up According to the demand situation from the Treasury to obtain the customer needs the goods. Usually take first-in first-out (FIFO) mode.
4. Shipping. Will be removed from the goods according to strict requirements to customers.
5. Information inquiry. You can check the information about the warehouse at any time, including inventory information, job information, and other information.
product features
1. Structure can be divided into single column stacker, double column stacker;
2. According to the different ways to pick up can be divided into single-span stacker and double-extension stacker;
3. Stacker and shelf with the use of up to 50 meters, the track can have a straight track, curved rail, fork rail;
4. Stacker in the positioning of the use of laser, bar code positioning to ensure its accuracy;
5. Speed control on the use of closed-loop frequency control or servo motor, so that smooth delivery, security;
6. Stacker in the use of electrical safety protection, such as mechanical stoppers, safety gears, torque limiter, emergency stop switch, speed limiter, broken chain (rope) protection, etc.
7. To ensure its safety performance stacking machine all electrical components are used high-quality into the brand products;
Product performance
序號 | 項 目 | 描 述 |
1 | 主體材質 | Q235,鋁型材 |
2 | 搬運單元數(shù)量 | 一般一次搬運一個單元,或按要求制做 |
3 | 搬運單元尺寸 | 標準托盤1200*800mm,1200*1000mm或按要求制做 |
4 | 單元貨物重量 | 10~2000kg或按要求制做 |
5 | 運行速度 | 5~240m/min,變頻調速 |
6 | 提升速度 | 5~50m/min,變頻調速 |
7 | 出叉速度 | 40m/min |
8 | 貨叉品牌 | 米亞斯或同級品牌或自己生產 |
9 | 定位精度 | ±5mm |
10 | 定位方式 | 激光認址或條碼定位 |
11 | 控制方式 | 手動,半自動,聯(lián)機全自動 |
12 | 電源電壓 | 國內標準工頻工業(yè)用電,3相,380V,50Hz |
13 | 供電方式 | 滑觸線 |
14 | 通訊方式 | 有線 |
Smooth high-level shelf performance characteristics:
1. In the case of uniform pressure, the deflection of the beam is 1/200 of the length of the beam, and the maximum permissible deflection of the column is 1/1000 of the height. The safety factor is 1.65;

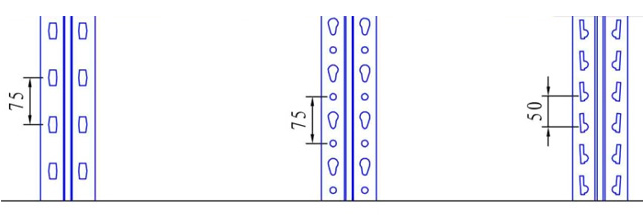

2. Column spacing of 75mm / 50mm, the beam can be arbitrarily adjust the height of this spacing, unique diamond-shaped hole design, can be used upside down, and is equipped with safety plugs to prevent the movement of the top of the beam.
