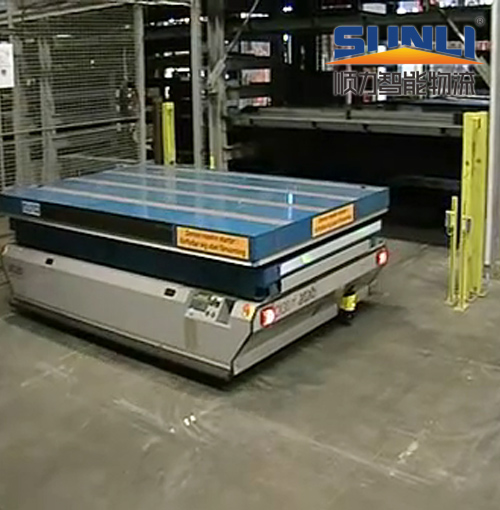

Traction AGV car

Classification of the genus:AGV & RGC
Click times:
Release date:2019/10/26
Online inquiry

Detailed introduction

AGV is an unmanned vehicle that is equipped with a non-contact guide with its own Jetway. Its main function is to be in the computer monitoring, according to the path planning and operational requirements, so that the car more accurate walking and docked to the designated location to complete a series of operating functions.

AGV is characterized by wheeled movement, which is superior to walking, crawling or other non-wheeled mobile robots with fast, high efficiency, simple structure, strong controllability and good safety. And material transport commonly used in the stacking machine, monorail car, conveyor belt, conveyor chain, conveyor roller can be a good match.

AGV activities area without laying track, support frame and other fixed devices, from the site, road and space constraints. Therefore, in the automated logistics system, the most fully reflect its automation and flexibility, to achieve efficient, economical and flexible unmanned production.

Traction AGV

product description

Traction AGV is driven by its own power traction without power car. The main body consists of AGV body and traction hook. Work traction hook and no power car has a variety of ways to achieve the tractor and the tractor is automatically connected and separated.

Product Features

1) AGV body structure is simple;

2) the tractor and the tractor is automatically separated and connected;

3) high efficiency, one can transport multiple cargo units;

4) The required channel is wide.

Product performance

序號	項 目	描述
1	導引方式	激光、磁條、慣性
2	行走功能	前進、后退、轉彎、側移
3	驅動及轉向方式	全方位驅動兼轉向
4	額定載荷	1000kg或按要求制作
5	前行速度	Max 60m/min
6	轉彎速度	Max 30m/min，根據實際應用可調整
7	執行機構	牽引機構
8	制動方式	減速電機、電磁制動
9	導引精度	±10mm
10	停位精度	±5mm
11	工作噪聲	≤65dB（A）
12	電池配備	48V或24V，鋰電或免維護鉛酸電池或鎳鉻電池
13	通訊頻率	Wifi 802.11 2.4GHZ
14	通訊方式	無線局域網
15	安全系統	非接觸式防護+防護欄+急停按鈕
